How to Replace a Sink Trap

After some time, you may find a leak in the bottle trap under your sink. Sometimes the leak occurs at the joints between the bottle trap and adjoining pipe to the wall outlet, but in most cases the leak is usually found between the bottle trap and the sink drain hole. This is often due to the sagging weight of the sink, which needs to be corrected before any repairs or replacement can take place.

Today, I will be showing how a leaky or defective bottle trap can be replaced, whatever the cause of leak or damage may be. Replacement bottle traps can be purchased quite cheaply from your hardware shop, and the tools required are only a screwdriver, a hacksaw and some emery paper. Let’s get down to business!

Buying the Bottle Trap

how to replace sink trap
1. Purchase a set of bottle trap from your local hardware store, which usually comes bundled with the required ancillaries. The whole set costs under RM10 – cheap!
how to replace sink trap

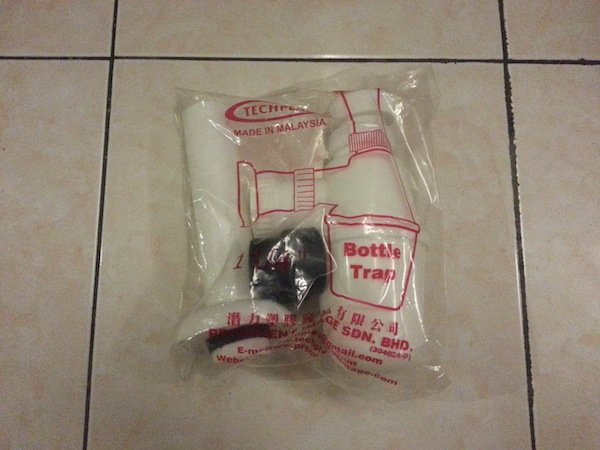

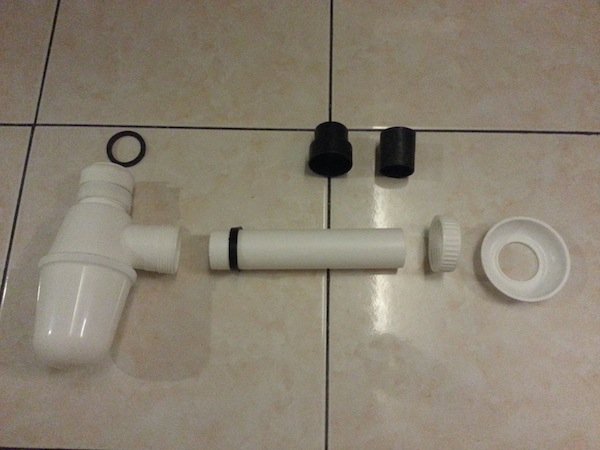

2. This is the entire set – bottle trap and ancillaries, including connecting pipe and rubber gaskets.
how to replace sink trap

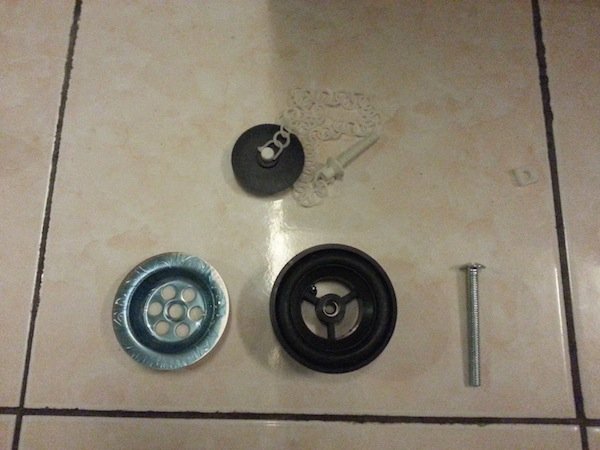

3. Since I was going to replace the bottle trap, I might as well replace the rusty sink strainer as well. This, like the bottle trap set, can also be found at the same hardware store for cheap.
how to replace sink trap

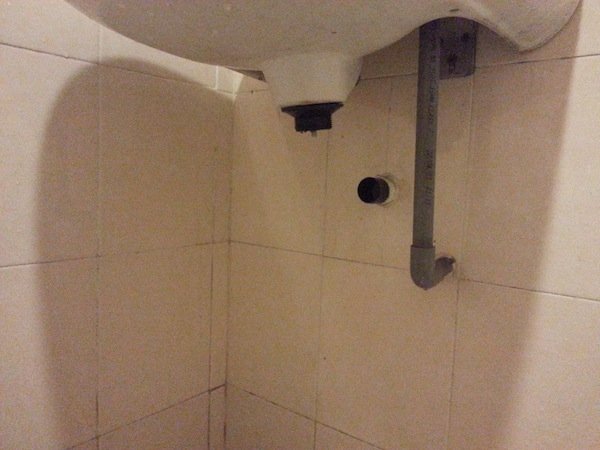

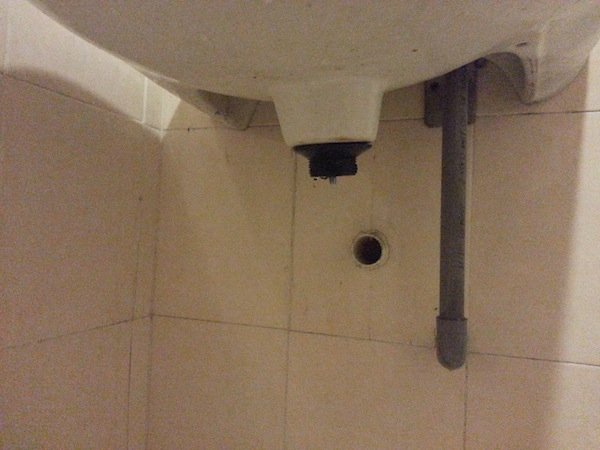

4. First, remove the bottle trap by unscrewing the two screw joints between the sink and the trap, and between the trap and the horizontal pipe to the wall (shown by 2 red arrows above).
how to replace sink trap

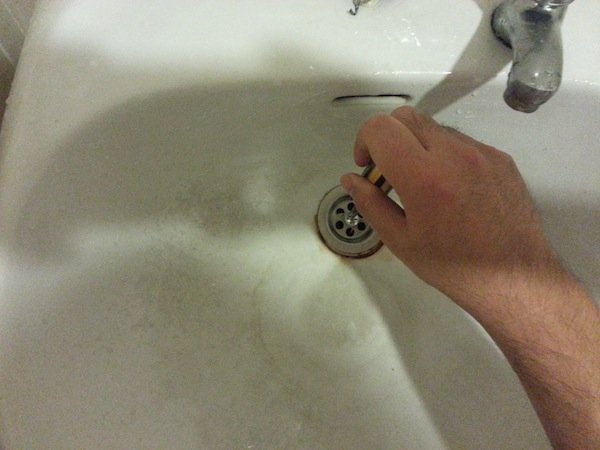

5. Next, remove the old rusty sink strainer by removing the screw in the centre of the strainer.

Replacing the Sink Strainer

replacing sink strainer
6. Held in my left hand is the lower plastic piece which we will be installing in the following steps, but first, peel off the protective layer on the new sink strainer…
replacing sink strainer

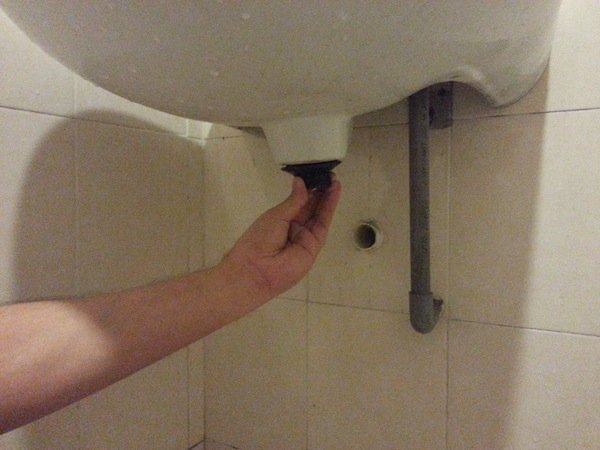

7. …and place it over the hole on the sink.
replacing sink strainer

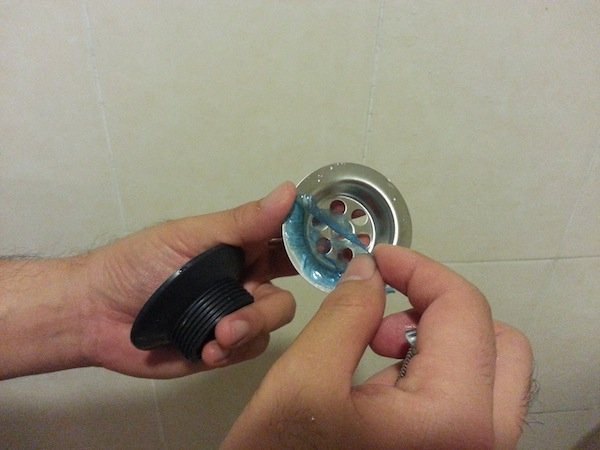

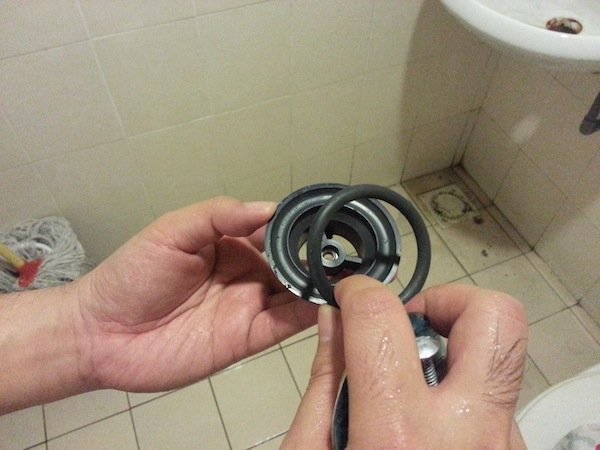

8. Place the rubber ring gasket into the lower plastic piece set, resting it into the groove…
replacing sink strainer
9. …like so! This plastic piece will later be connected to the bottle trap.
replacing sink strainer
10. Place the plastic piece and rubber gasket squarely against the hole rim at the bottom of the sink. With one hand holding this against the sink…
replacing sink strainer
11. …use the other hand to place the bundled screw through the centre of the strainer right through to the bottom assembly (held by your other hand) and tighten with a screwdriver. Be careful NOT to overtighten as that may damage and deform the rather thin strainer. It should just be tight enough such that the gasket at the bottom forms a good seal with the sink. Turn on the tap and check that water flows right through and not through the seam.
replacing sink strainer

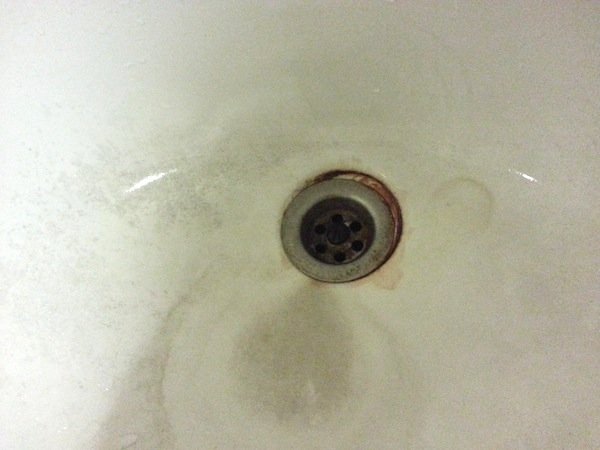

12. Here is the strainer completely installed. Ensure that the strainer sits evenly against the periphery of the hole such that no water seeps in between. There’s some rust stains on the sink that I had not bother to remove. And at the bottom…
replace sink strainer
13. …the lower plastic piece assembly also sits evenly against the lip of the undersink hole, such that water flows only through the centre main hole and not through the side or seam.
Advertisement:



That’s it…we’re done with the strainer. Now, on to the bottle trap!

Replacing the Bottle Trap

how to replace sink trap

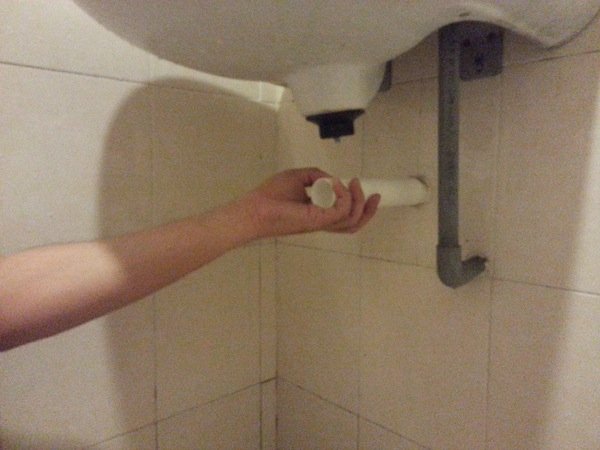

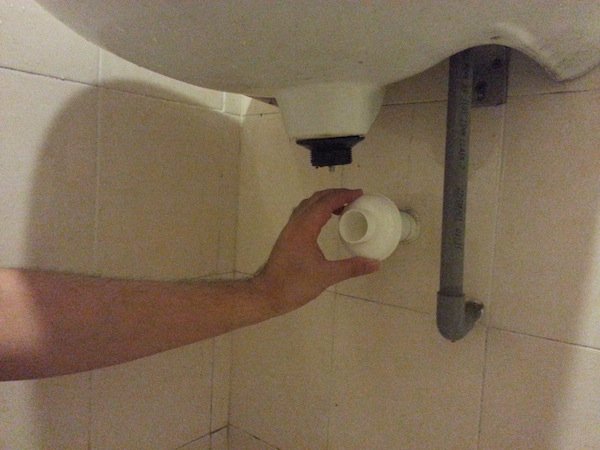

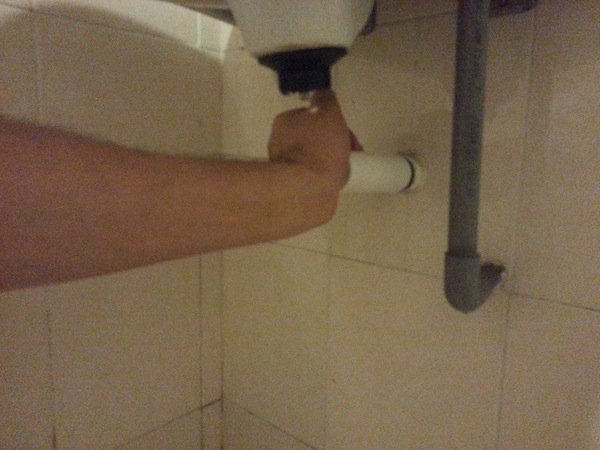

14. Place the bundled connecting pipe against the inlet on the wall and, imagining where the bottle trap will be, use your thumb to mark on the pipe where the connection on the bottle trap will be. You should allow about an inch as longer as this end of the pipe will need to penetrate into the bottle trap slightly. Use and hold the bottle trap against the sink and pipe to gauge measurements if required.
how to replace sink trap
15. Use a hacksaw to saw off the unwanted portion. Remember that it is safer to underestimate and saw less off and saw a second time, than to saw off too much the first time, if you’re unsure. And especially if this is the first time you’re doing this.
how to replace sink trap
16. Remove the burrs with emery paper or sandpaper.
how to replace sink trap

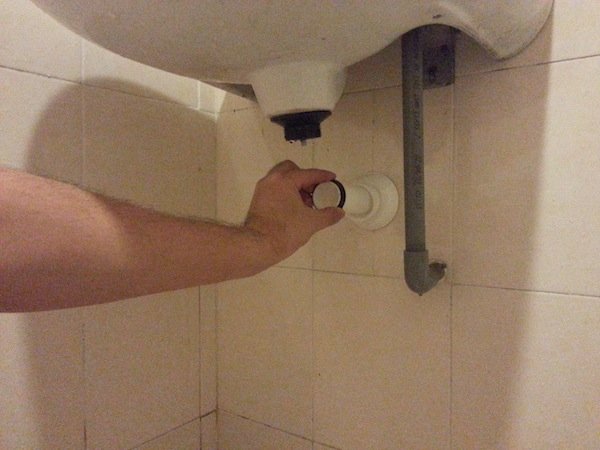

17. Place the bundled black connector into the inlet on the wall. The fit should be very snug one. You may need to push it with your palm to get it in deep enough, but not all the way through! Half of this connector should sit in the inlet, and the other half on the connecting pipe in the following steps.
how to replace sink trap
18. This is how the connecter should look like, fully installed.
how to replace sink trap

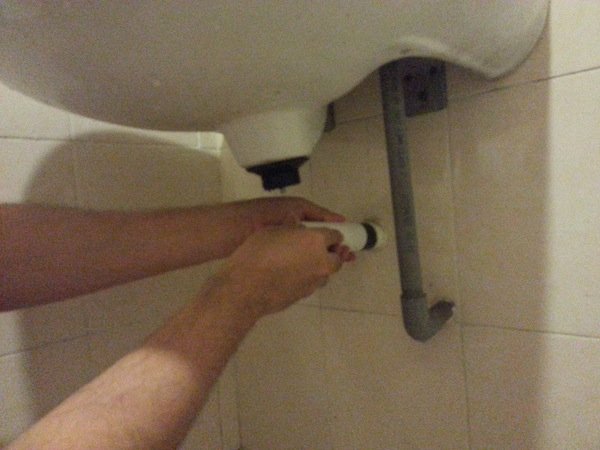

19. Next, install the connecting pipe we sawed on earlier. Push it into the black connector. Well, it’s the black connector that goes INTO the white connecting pipe.
how to replace sink trap
20. And like the black connector before, you may need to use your palm to push the white connecting pipe all the way through. Again, ensure that the fit is snug.
how to replace sink trap
21. Here’s the connecting pipe completely installed. You should not be able to see any part of the black connector as it resides between the white pipe and the inlet on the wall.
how to replace sink trap

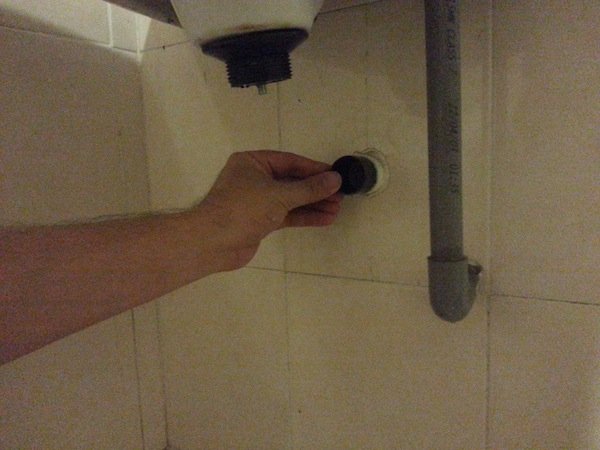

22. Next, place the bundled inlet cover through the pipe as shown, and push it all the way against the wall.
how to replace sink trap
23. Place the bottle trap screw cap through the white pipe, with the screw thread facing outwards.
how to replace sink trap
24. Next, grab the accompanying rubber gasket. You will notice that this gasket is tapered, and should be installed with the wider end towards the wall, and the narrower end towards the bottle trap.
how to replace sink trap
25. Place the rubber gasket onto the white connecting pipe as described in the previous caption.
how to replace sink trap
26. Next, prep the bottle trap by making sure that the flat rubber gasket is seated into the other screw cap which will later be attached to the sink.
how to replace sink trap

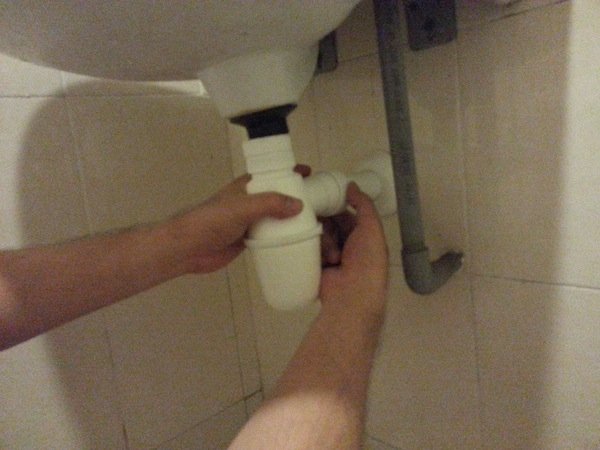

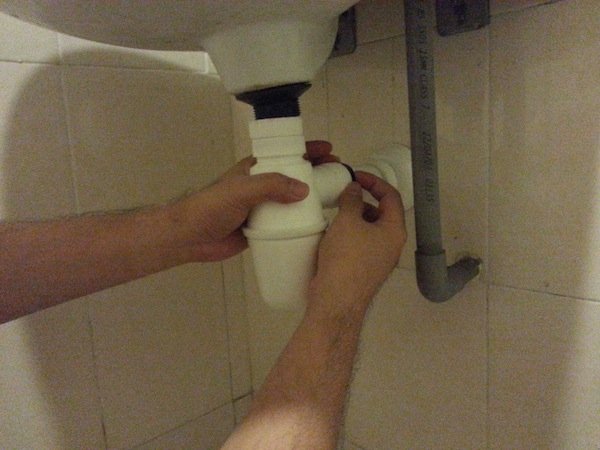

27. Put the bottle trap assembly in place and push the tapered rubber gasket into the bottle trap outlet. Position the bottle trap such that the top of the bottle trap coincides with the opening on the undersink. Once the tapered rubber gasket is in place…
how to replace sink trap
28. …tighten the screw cap securely to the bottle trap here.

NOTE: Note that in the next two steps, you may need to adjust the tilt of the sink slightly. Ideally, this should be adjusted from the bracket just behind the sink, but that is a topic for another article. If the tilt of your sink is not too bad, you could just push it up slightly and install the bottle trap, provided the bottle trap is NOT holding the weight of your sink, otherwise you could expect another leak in due course!

how to replace sink trap

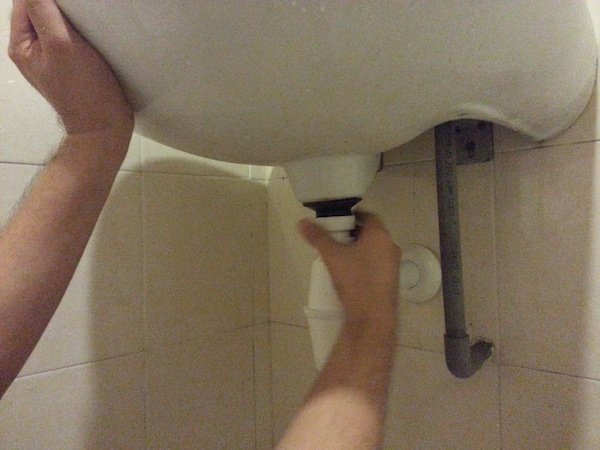

29. Extend or contract (and saw off if too long) the white vertical connecting pipe to the sink, and tighten the screw cap on the bottle trap…
how to replace sink trap
30. …as well as the other screw cap to the black plastic sink strainer assembly installed earlier.

Completing and Testing the Installation

how to replace sink trap
31. And that’s it…you’re done!
how to replace sink trap
32. Finally, turn on the tap and allow water to flow through for a few seconds, ensuring that there is no leak and that the job has been completed perfectly!
